LED Lighting MCPCB
For bulbs, battens, panels, downlights, street and flood lights. Aluminium base keeps LEDs cool and bright for longer.
LED lighting boardsSingle-sided PCB manufacturer in India
Single-sided.
Perfected.
Lighting MCPCBs, DOBs, emergency bulb, charger and SMPS boards. Automotive and beyond. Every process under one roof.
132 mm round LED panel PCB. Tooling ready.
We make one kind of board.
That's the point.
Every line, every tool and every operator at our Barwala plant works on single-sided PCBs. No multilayer jobs ahead of yours in the queue. No compromises built for someone else's product.
B2B production supplier to manufacturers. Minimum order 40 m² per design (≈ 430 sq ft of board, about 16,000 pcs of a 50 × 50 mm board, or 4,000 pcs of 100 × 100 mm).
2019Manufacturing since
10,000 m²Capacity every month
1,000+Jobs processed
50+Skilled operators
Made for what
you make.
Our boards go into lighting and power products sold across India. Whatever your design, there's a good chance we've made something like it.
DOB PCB
Driver and LEDs on a single board. Round tools ready in 82, 112 and 132 mm, so most DOB orders skip tooling entirely.
See DOB sizesEmergency Bulb PCB
Rechargeable inverter and emergency bulb boards. Round tools for common bulb sizes are ready on the shelf.
See bulb tool sizesCharger PCB
Mobile chargers, adapters and battery chargers. Built for the volumes and price points the charger market demands.
See charger boardsSMPS PCB
Switch-mode power supplies and LED drivers, laid out with the clearances and copper weights power circuits need.
See SMPS boardsAutomotive PCB
Boards for vehicle lighting and electronics, on laminates chosen to handle heat and vibration.
See automotive boardsAnd everything else
Appliance controls, fans, inverters, consumer electronics. If it's single-sided, send us the design.
See appliance boardsPower, too
Not just light. Power.
Alongside lighting, our floor runs chargers, adapters, SMPS, LED drivers and appliance controls every day, with the same single-sided focus and the same volume pricing.
5 V USB charger PCB, CEM1. Illustration, not a customer design.
Panel after panel.
Identical.
Every board blanked on the same hardened tool, so the hundredth panel matches the first. Clean edges, consistent pads, ready for your SMT line.
WhiteGreen or black mask on request
AluminiumBase for heat-critical LEDs
PunchedOn our own ready tools
PanelisedFor fast SMT assembly
Ready tool library
Your size is
probably ready.
Blanking tools for the round bulb, emergency bulb and DOB sizes the market uses most are already made and running. Matching orders skip tool-making entirely.
46mm
40 to 66 mm
Bulb and emergency bulb boards. Tools for 40/46, 60/66 and 62 mm are ready and in regular production.
82 mm
Compact DOB and downlight boards. Tool made, tested and running.
112 mm
The mid-size DOB most brands sell in volume. Send artwork and quantity; production starts without a new tool cycle.
132 mm
Large DOB and panel designs. Same ready tooling, same consistency from the first lot to the hundredth.
40/46 mmBulb
60/66 mmBulb, emergency bulb
62 mmBulb, emergency bulb
82 mmDOB, downlight
112 mmDOB
132 mmDOB, panel
And many moreSend your board outline. We'll check it against our tool library before quoting.
Which material
is right for you?
I'm making
and I need
FR1
Paper phenolic
Remotes, toys, low-cost consumer boards
Lowest cost. Easy to punch.
RecommendedCEM1
Paper core, glass-epoxy surface
LED drivers, chargers, SMPS, appliances
Stronger than FR1. Still punchable.
RecommendedCEM3
Non-woven glass core
LED lighting, power supplies
Near FR4 performance. Lower cost.
RecommendedFR4
Woven glass epoxy
Telecom, industrial, automotive, medical
Highest strength and stability.
RecommendedMCPCB
Aluminium base
LED bulbs, panels, street lights, DOB
Pulls heat from LEDs. Longer life.
RecommendedFrom Gerber to dispatch. Under one roof.
Fourteen controlled steps, from CAM check to dispatch. No outsourced stages, and one team accountable for your board at every step.
CAM check
Your Gerber is checked for manufacturability and panelised for minimum material waste.
PDF approval
You receive a PDF of the final layout to approve before any material is cut.
Job card
A job card with a unique number follows your order through every stage.
Circuit printing
The circuit image is screen printed onto the copper-clad panel.
Etching
Unprotected copper is etched away, leaving clean, precise tracks.
Stripping
The print resist is stripped off to expose the finished copper circuit.

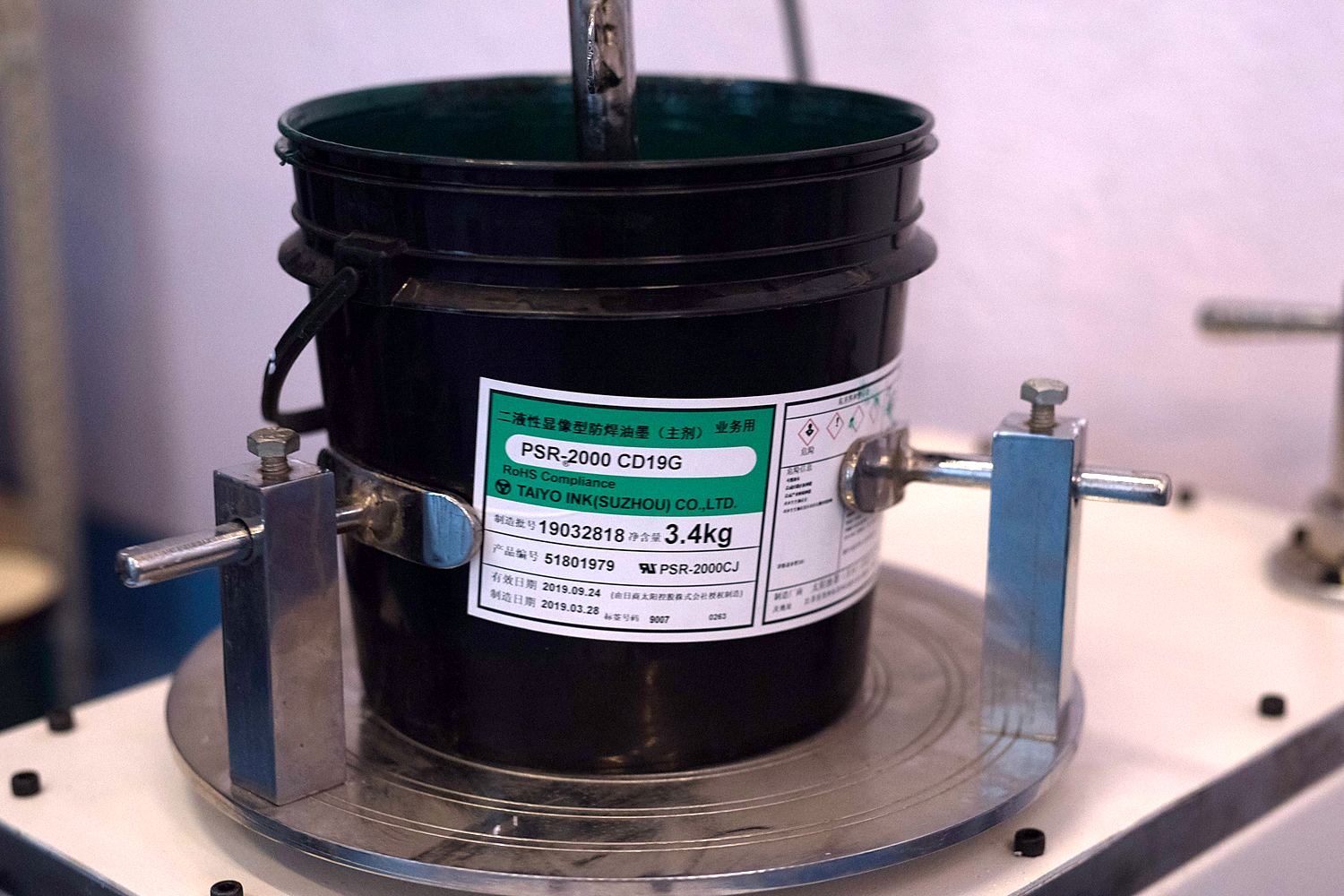

Masking
Solder mask is printed and cured to protect the copper and define pads.
Legend
Component markings and your part number are printed on the board.
CNC or die punch
Boards are profiled by CNC routing or punched on our blanking tools.
V-cut
V-grooves are scored so boards snap apart cleanly after assembly.
BBT
Bare board testing checks every circuit for opens and shorts.
Final finish
The surface finish is applied to protect the pads and keep them solderable.
Final inspection
Our independent QC team inspects each lot. Only approved boards move on.
Dispatch
Packed to your specification, with the job number traceable on every box.
See inside
our plant.
Every stage, from artwork to final inspection, happens here in Barwala.

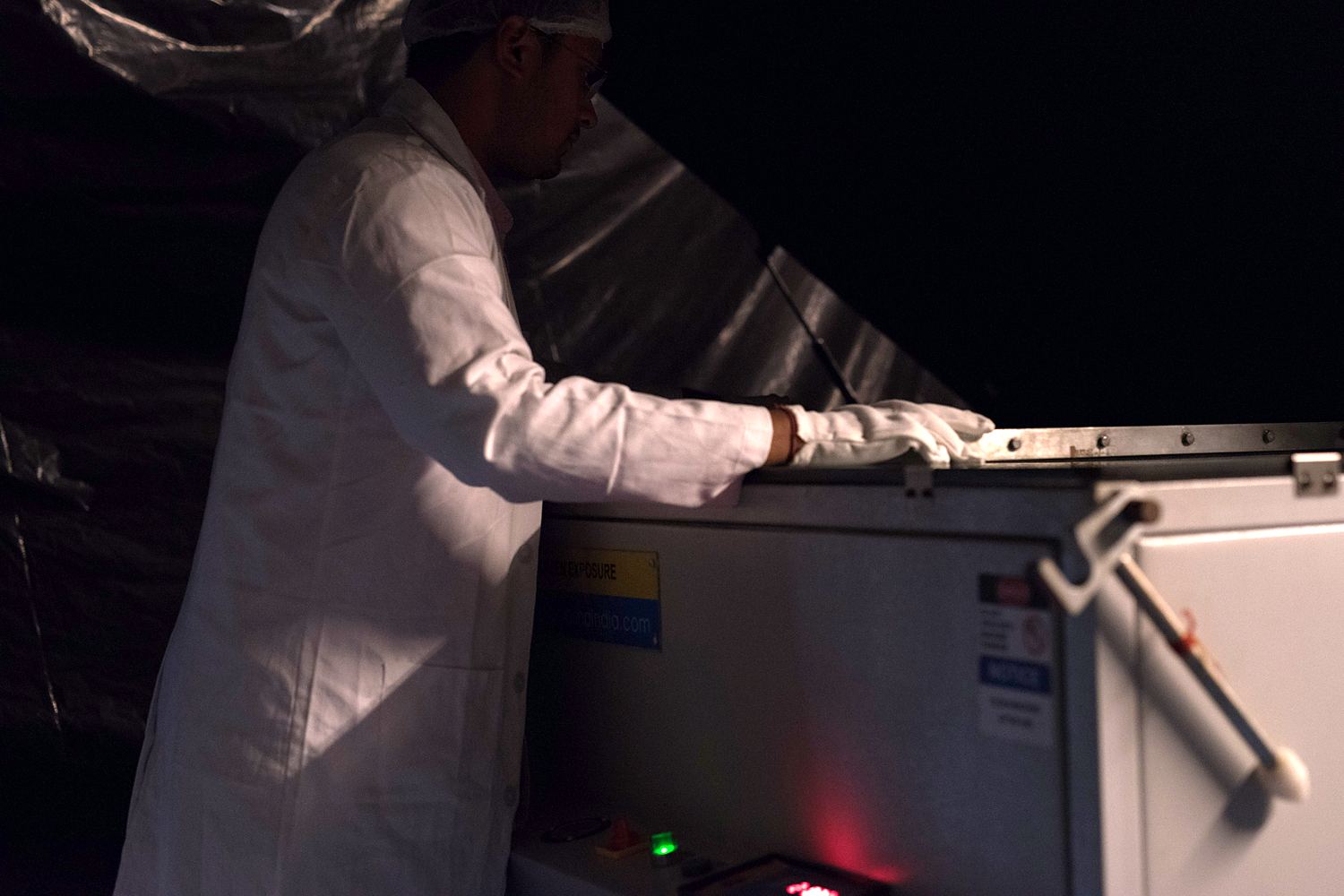

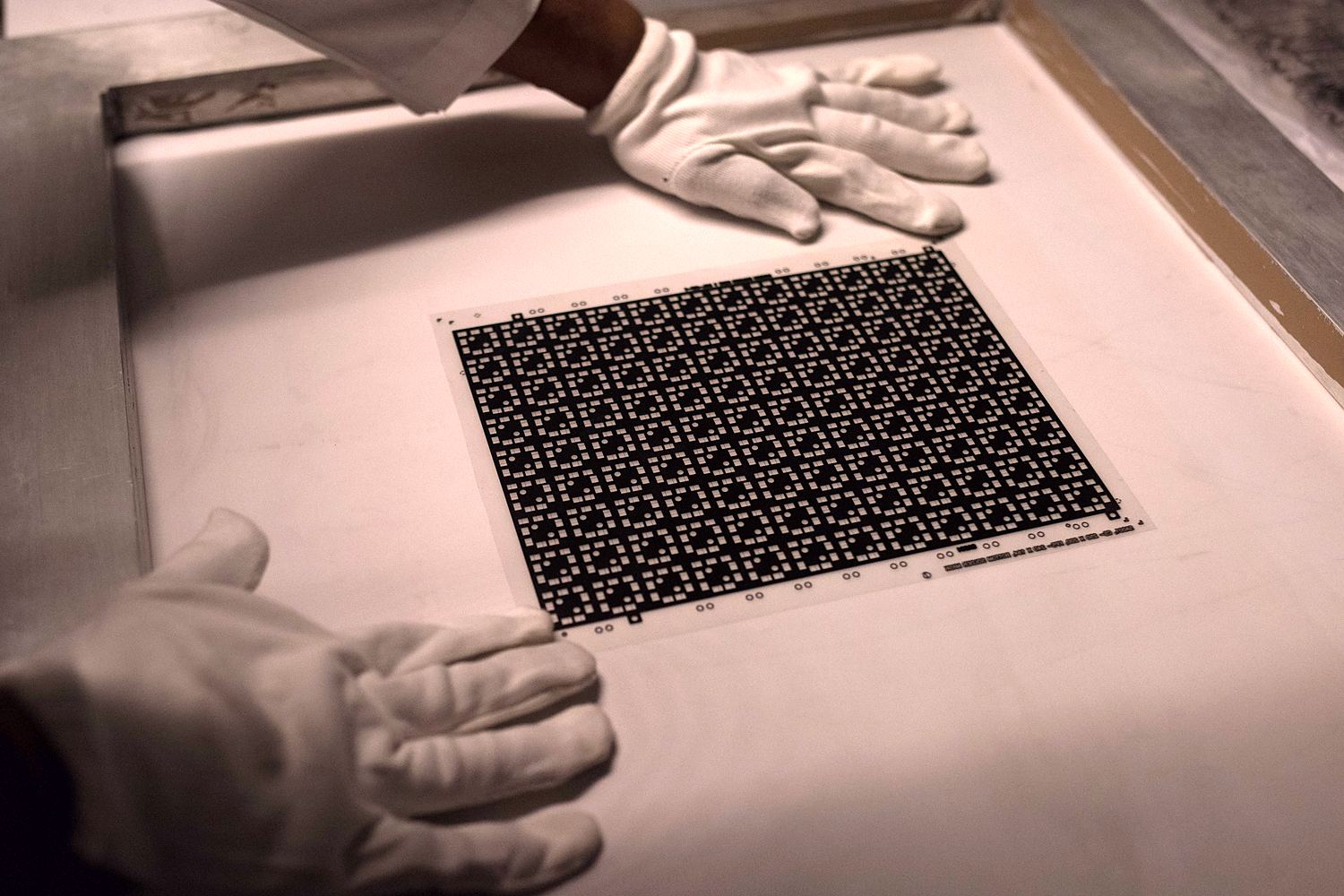

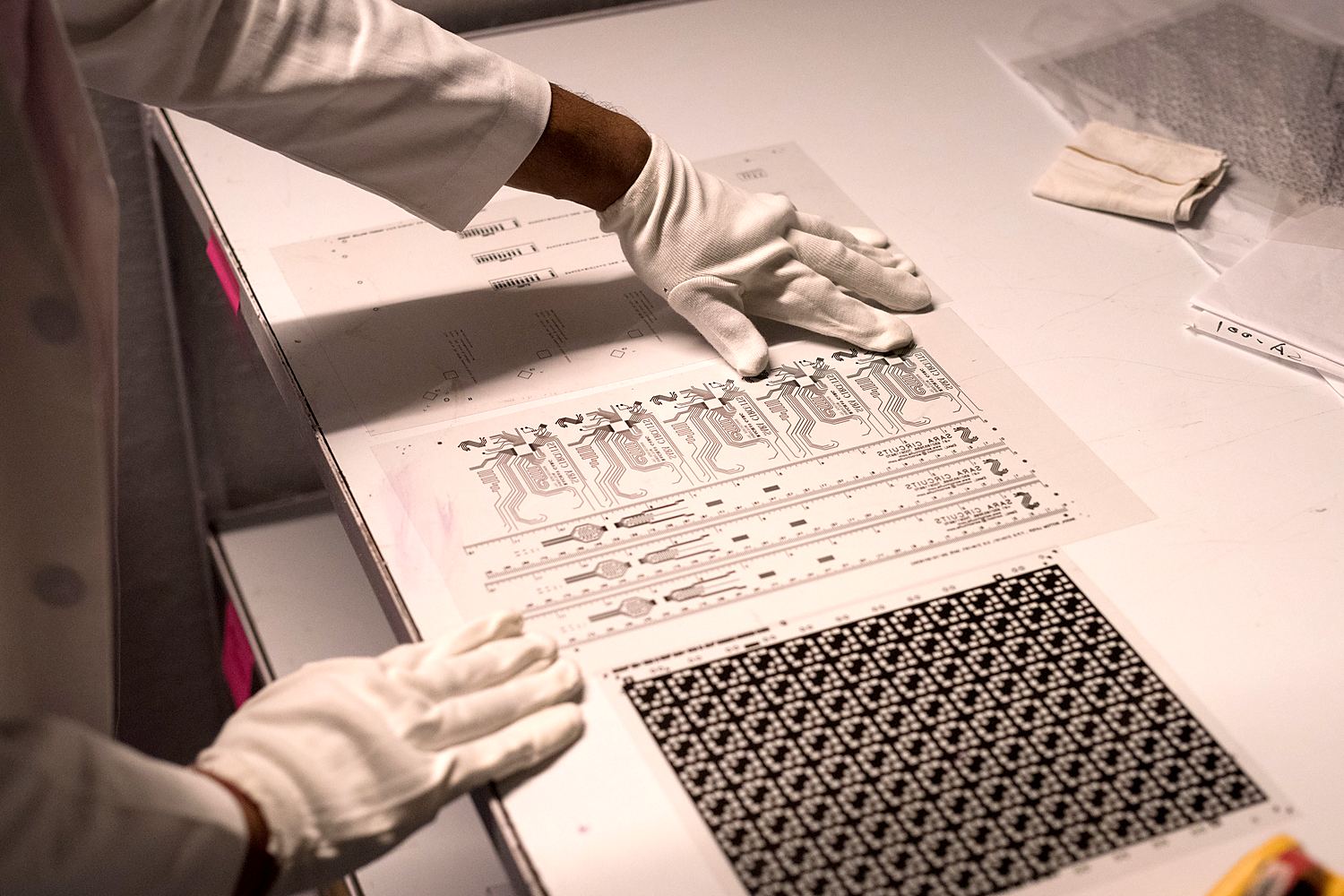

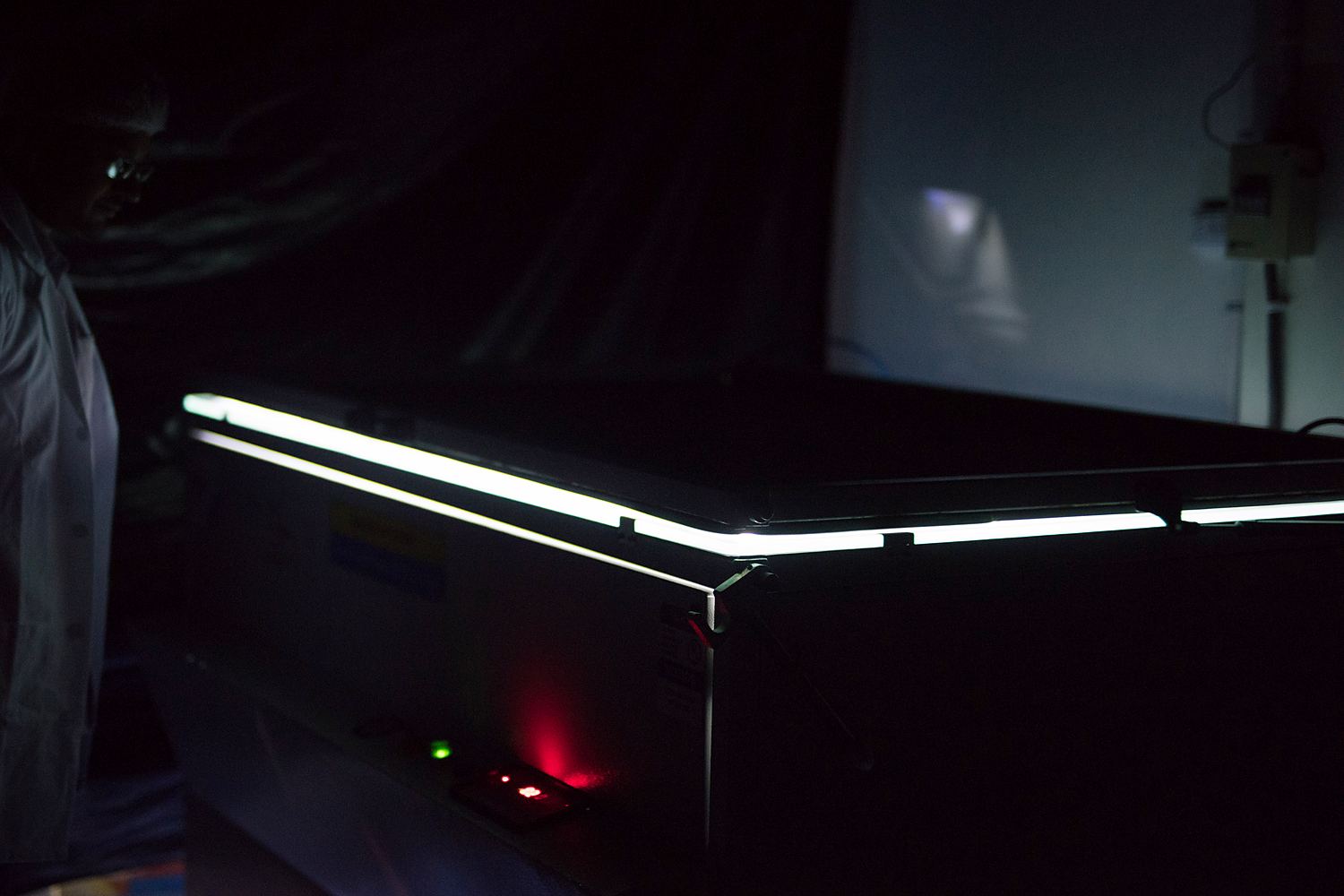

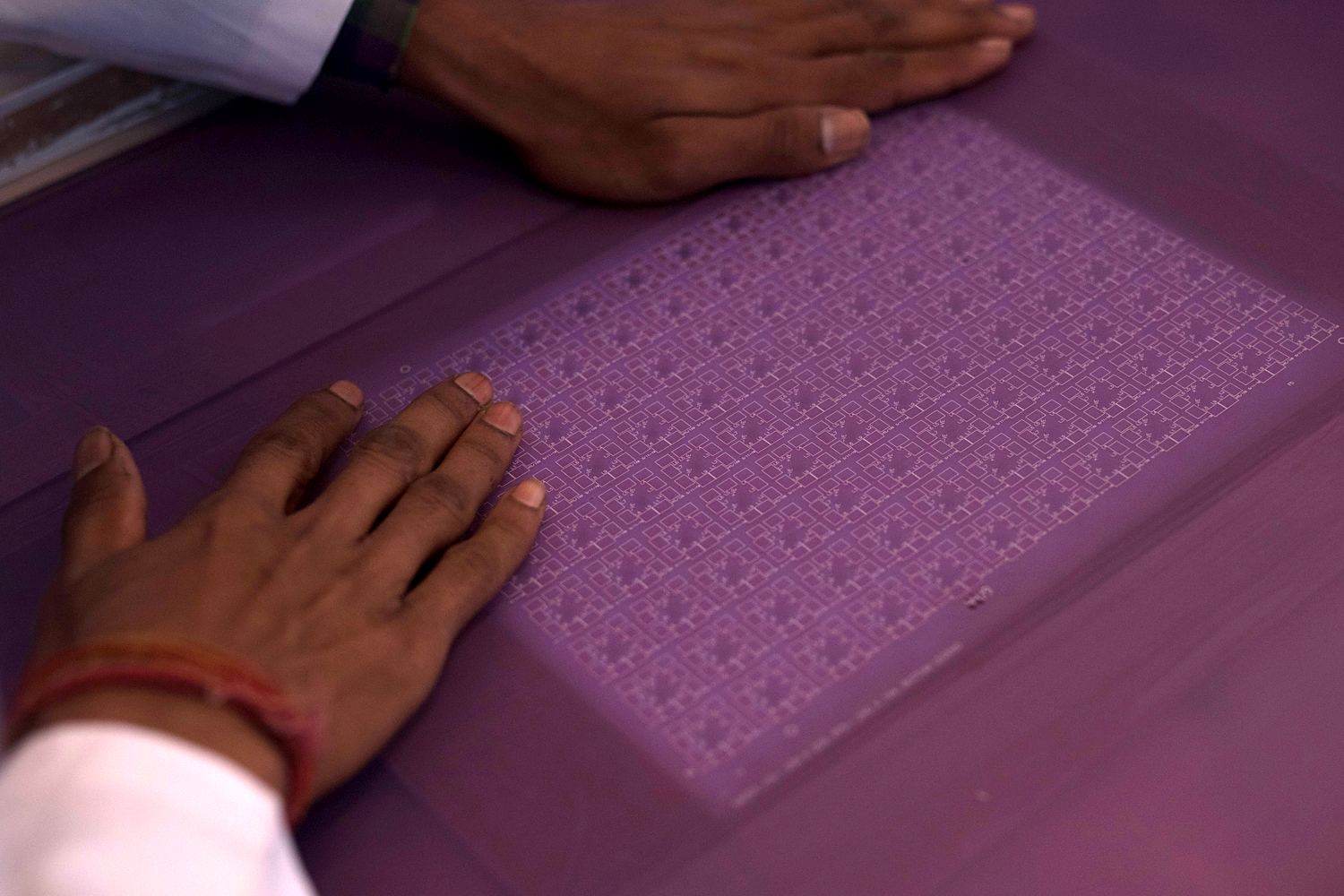

Phototooling, film registration and exposure · 5 photos

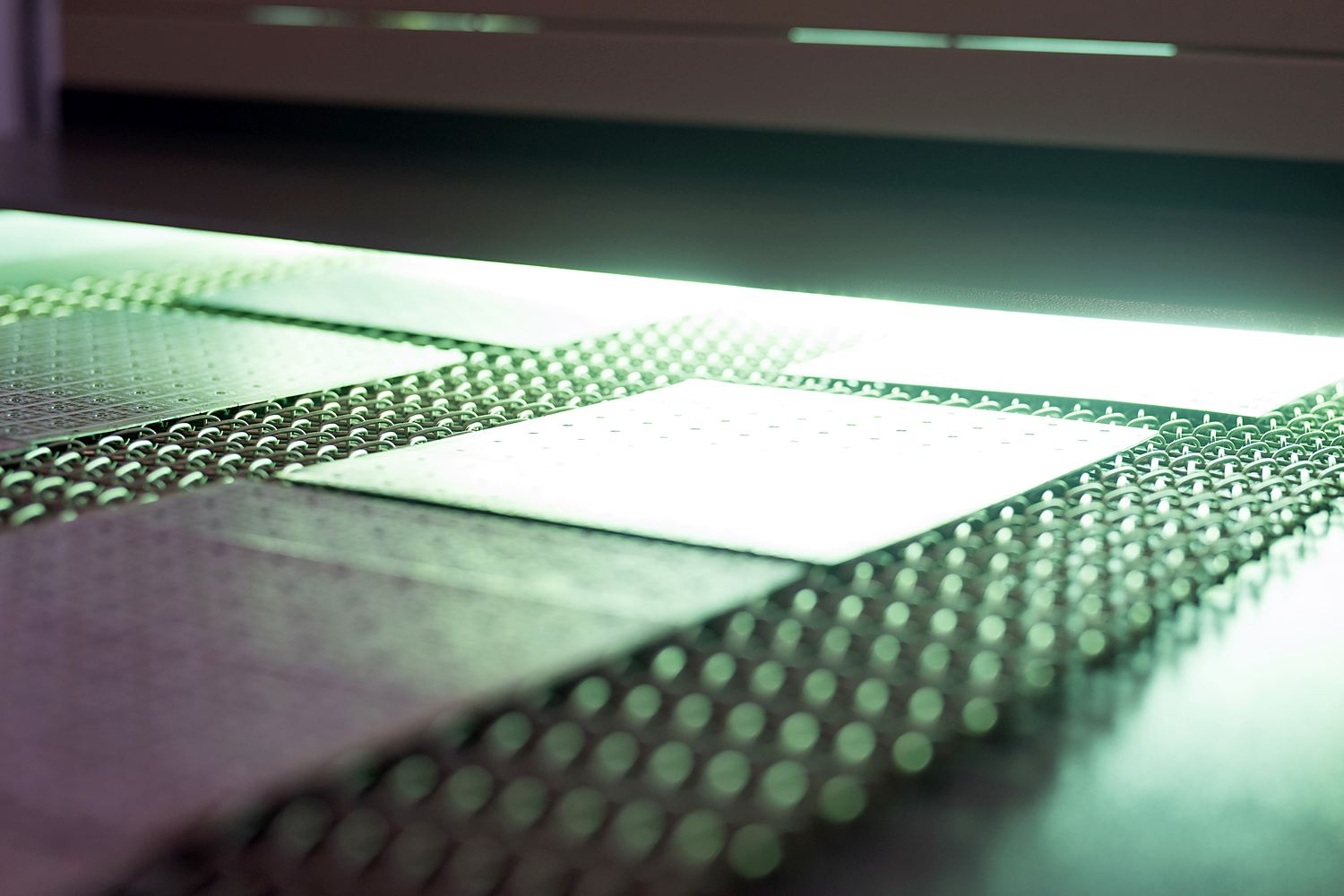

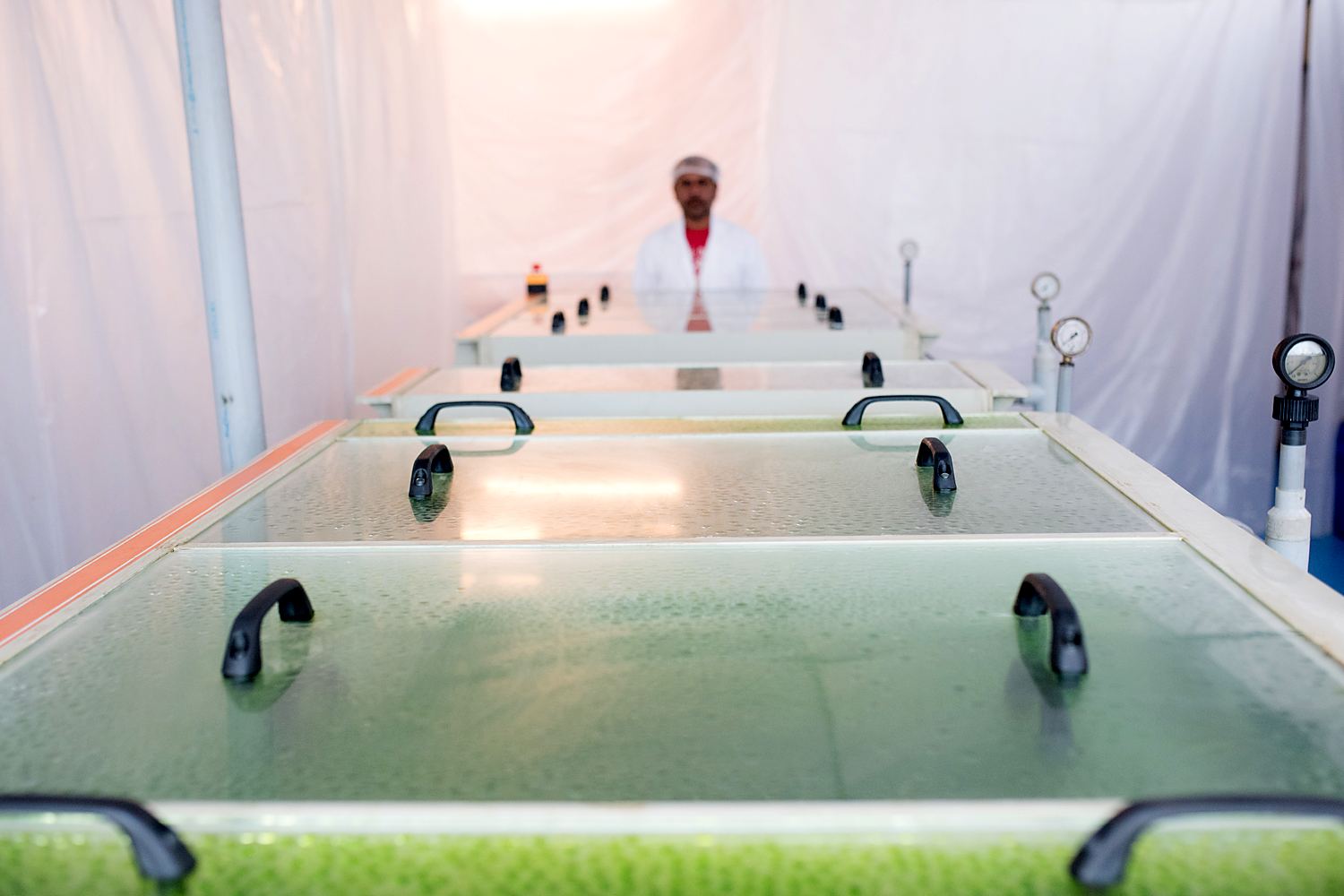

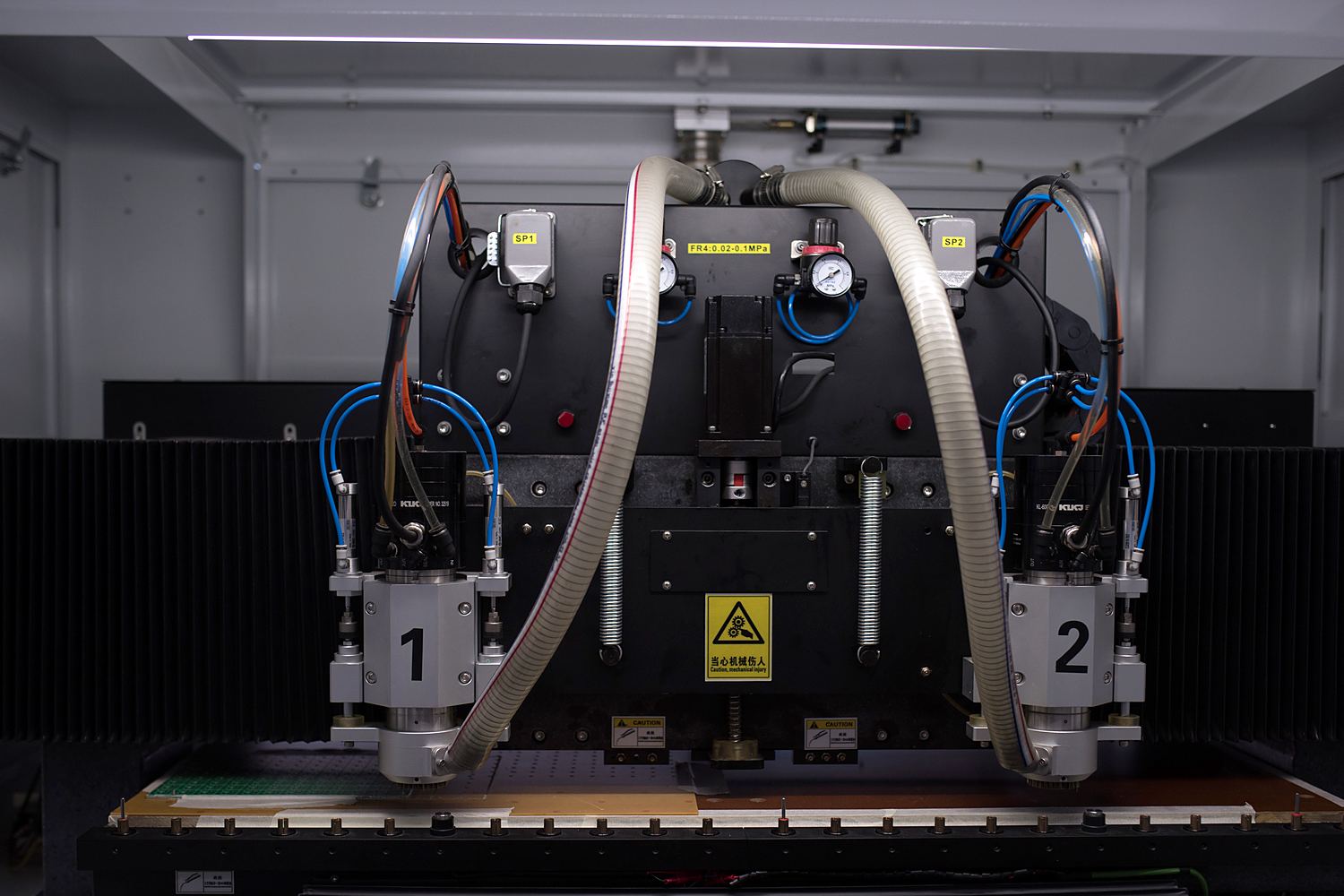

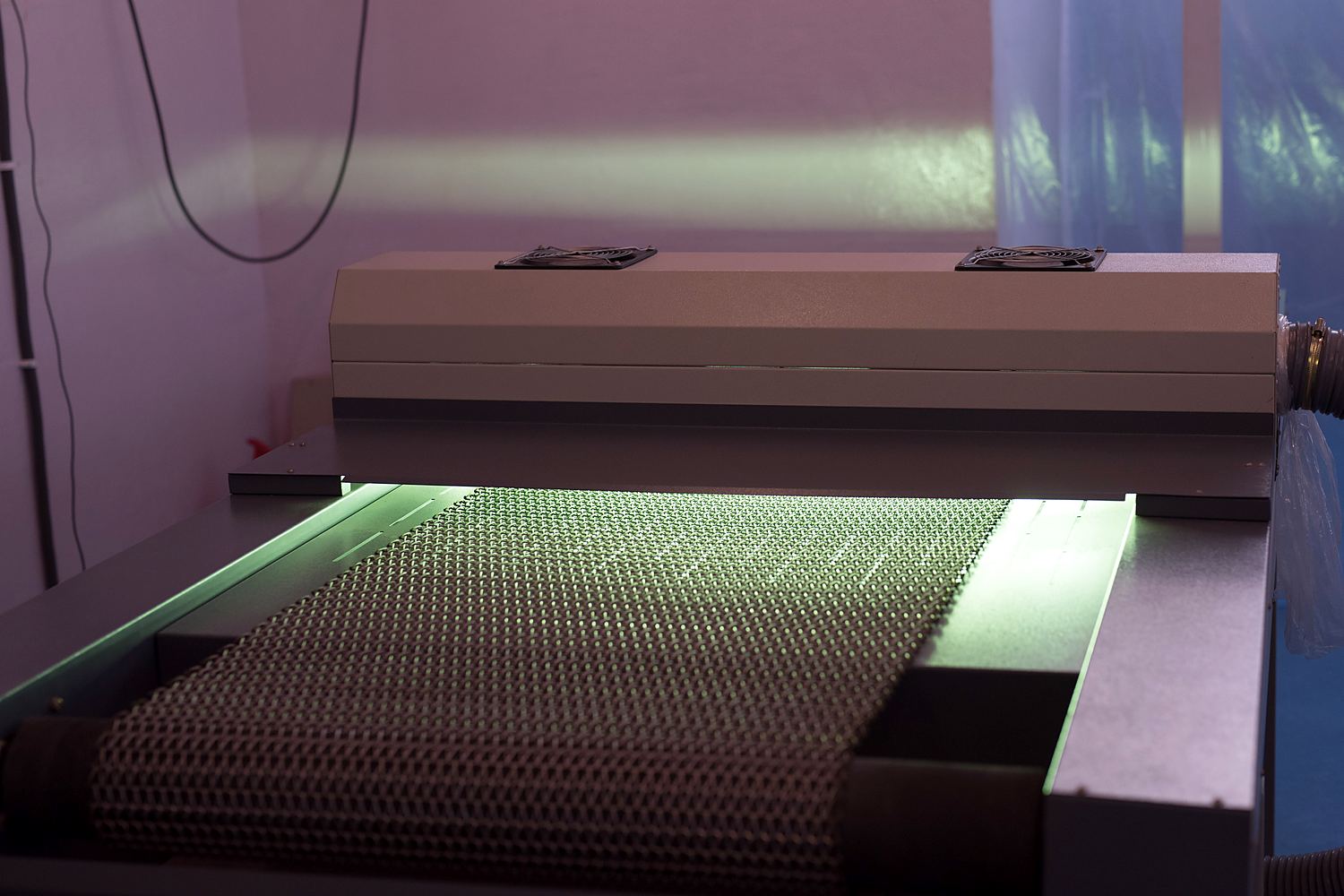

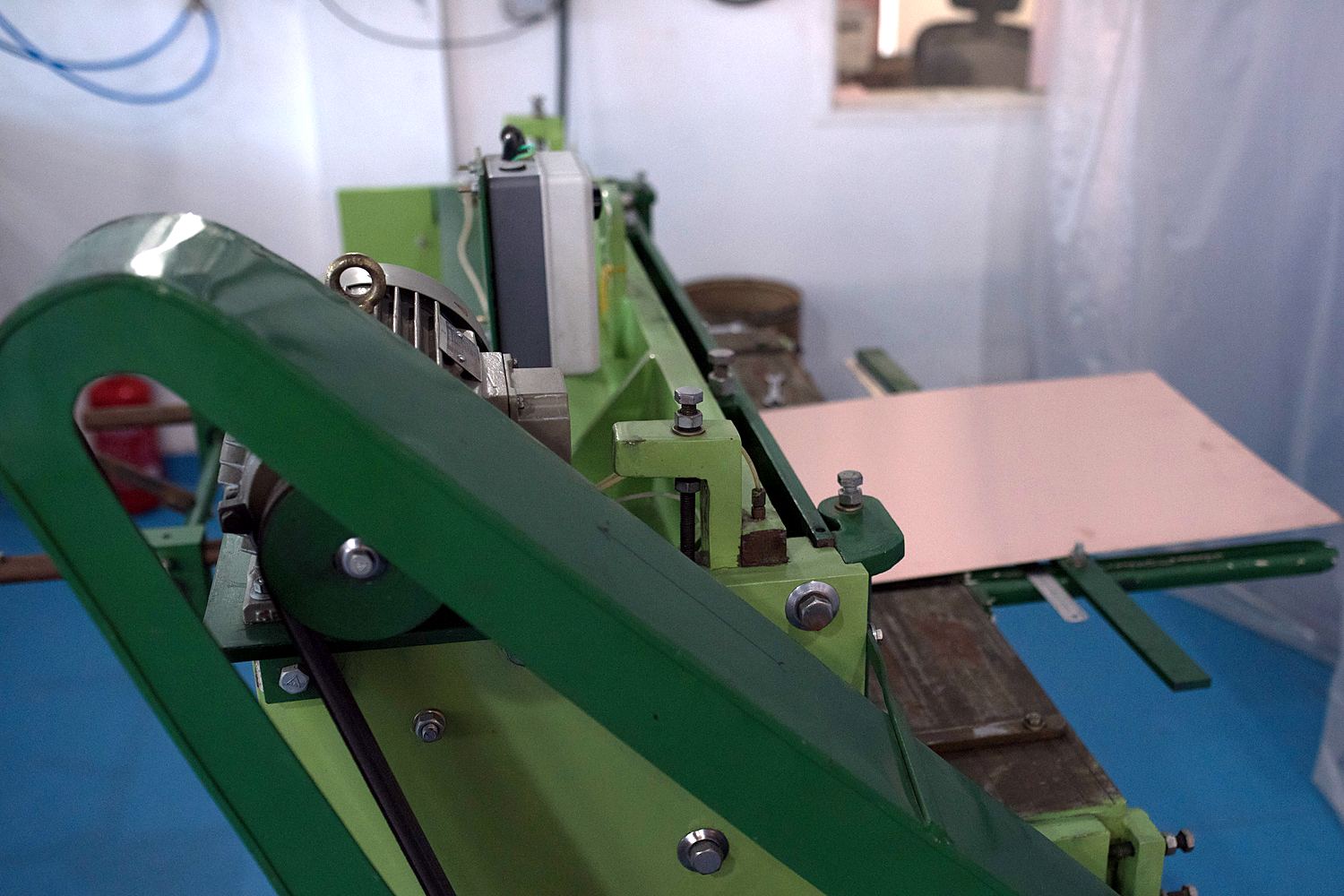

Wet process, drilling, curing and profiling · 7 photos

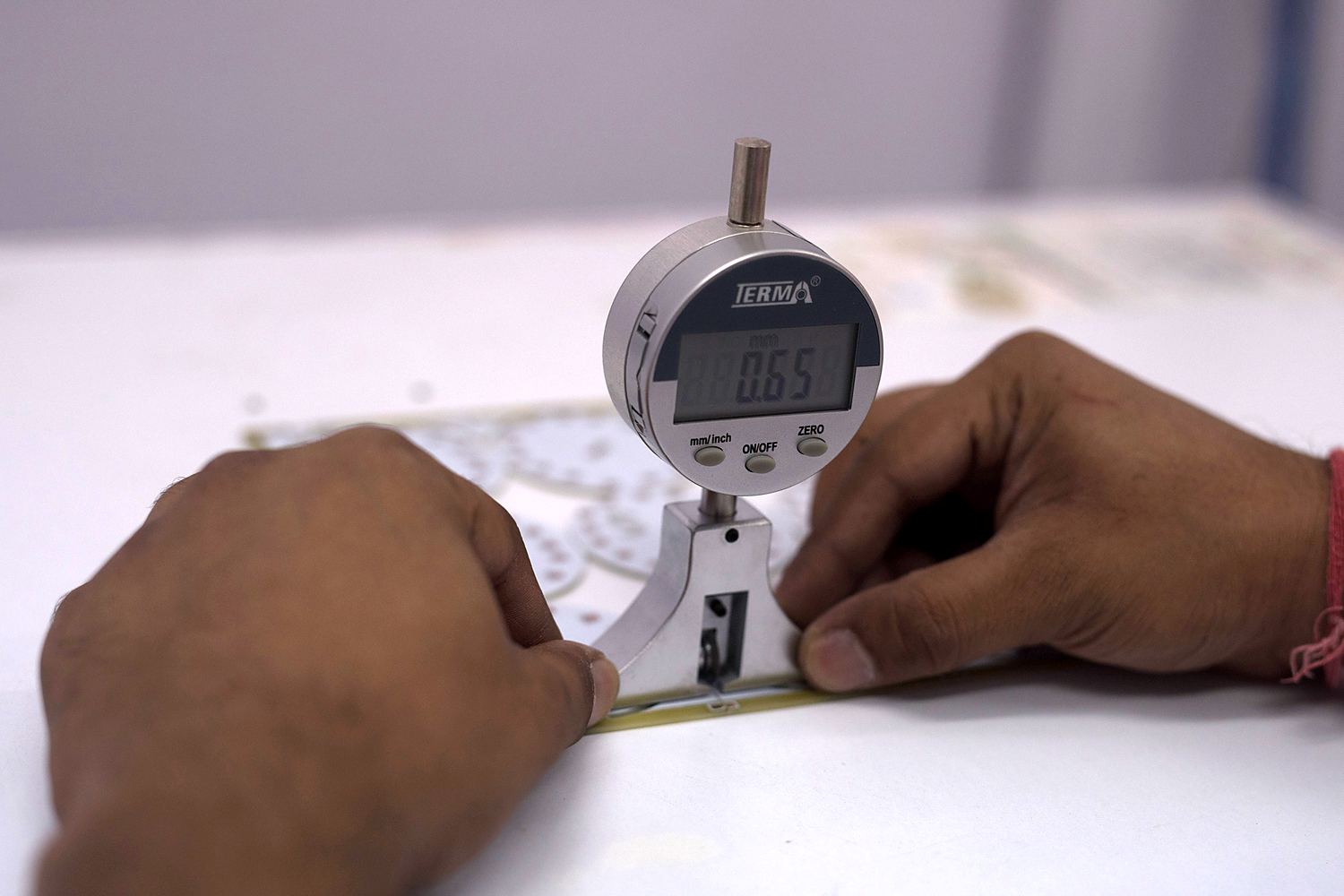

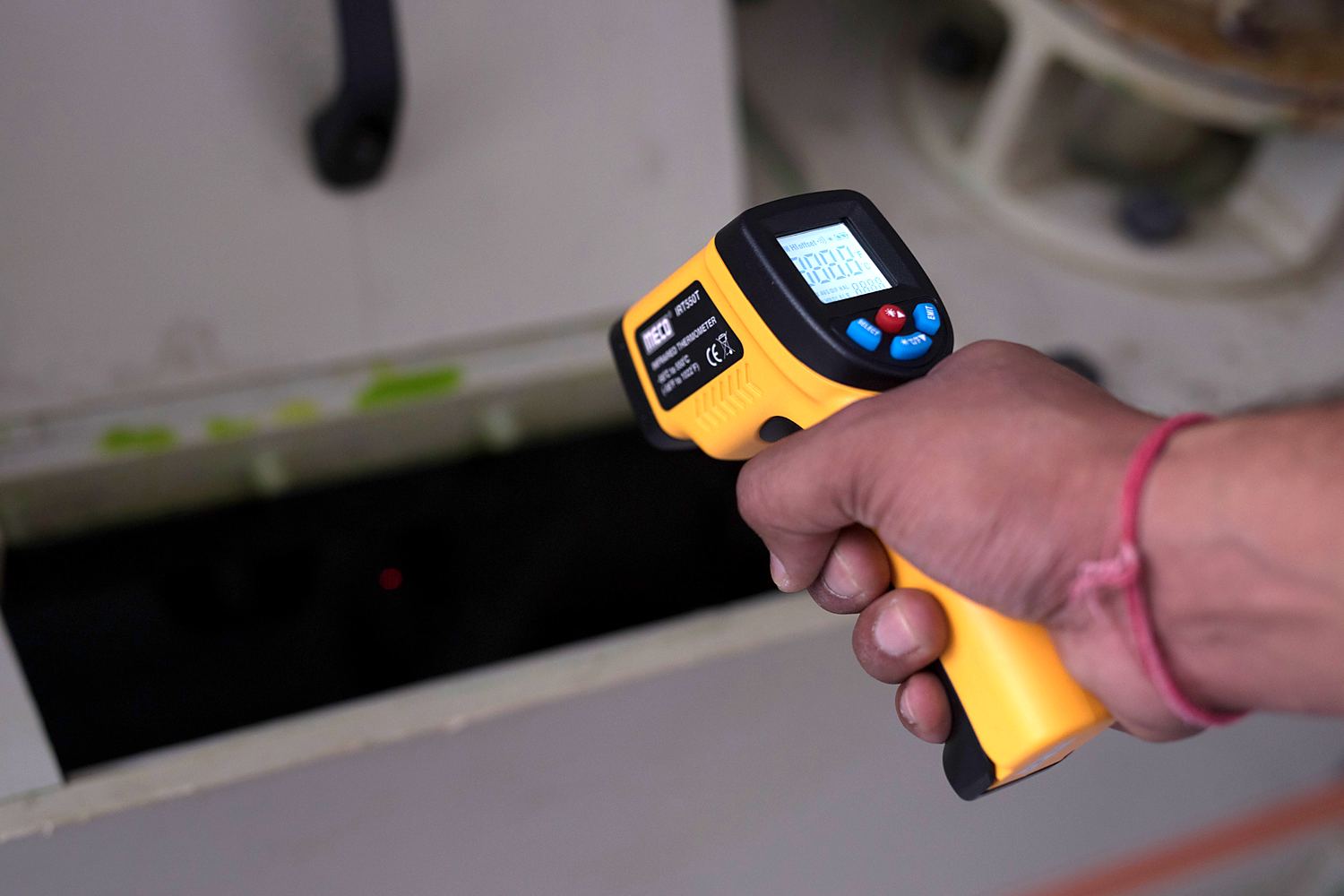

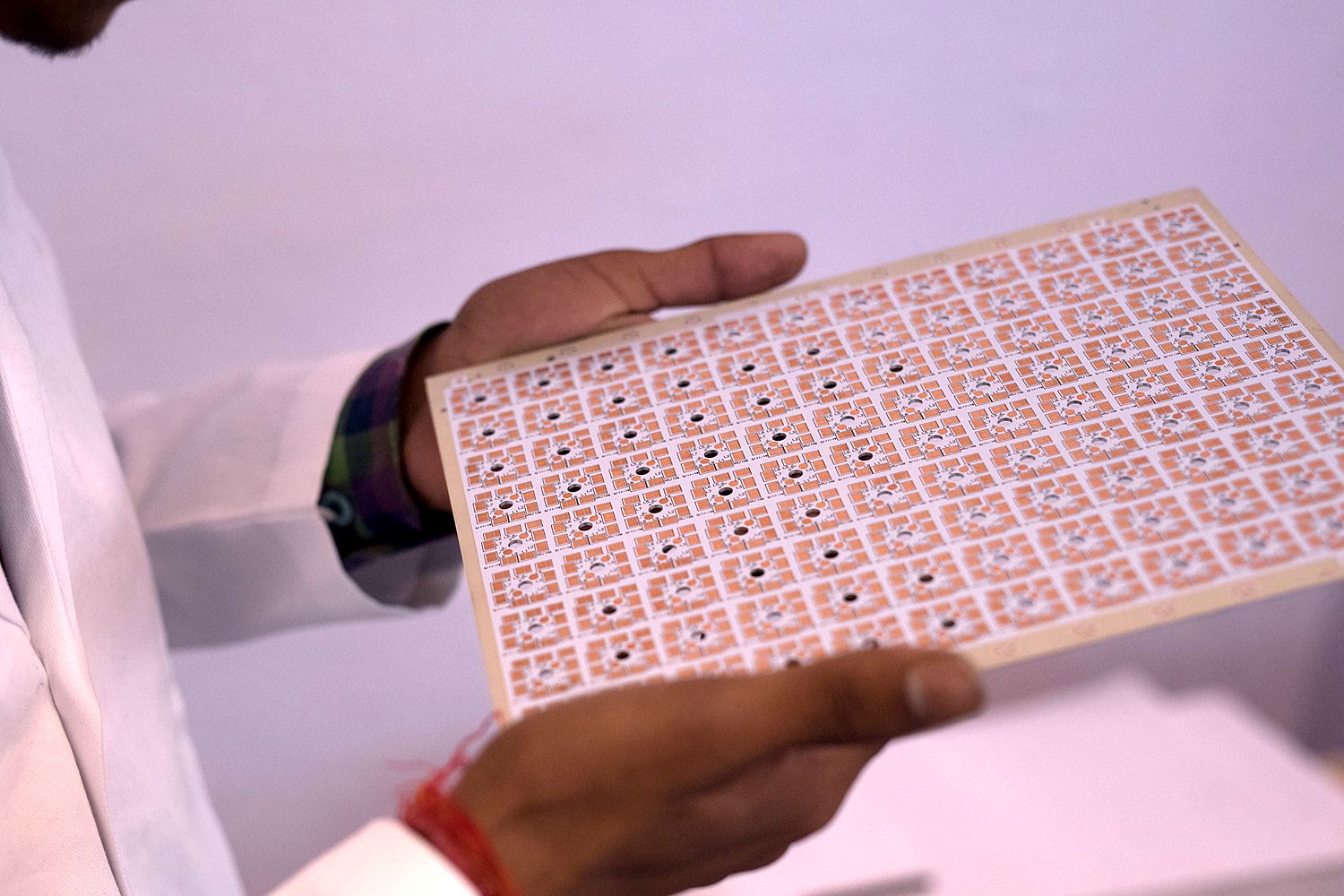

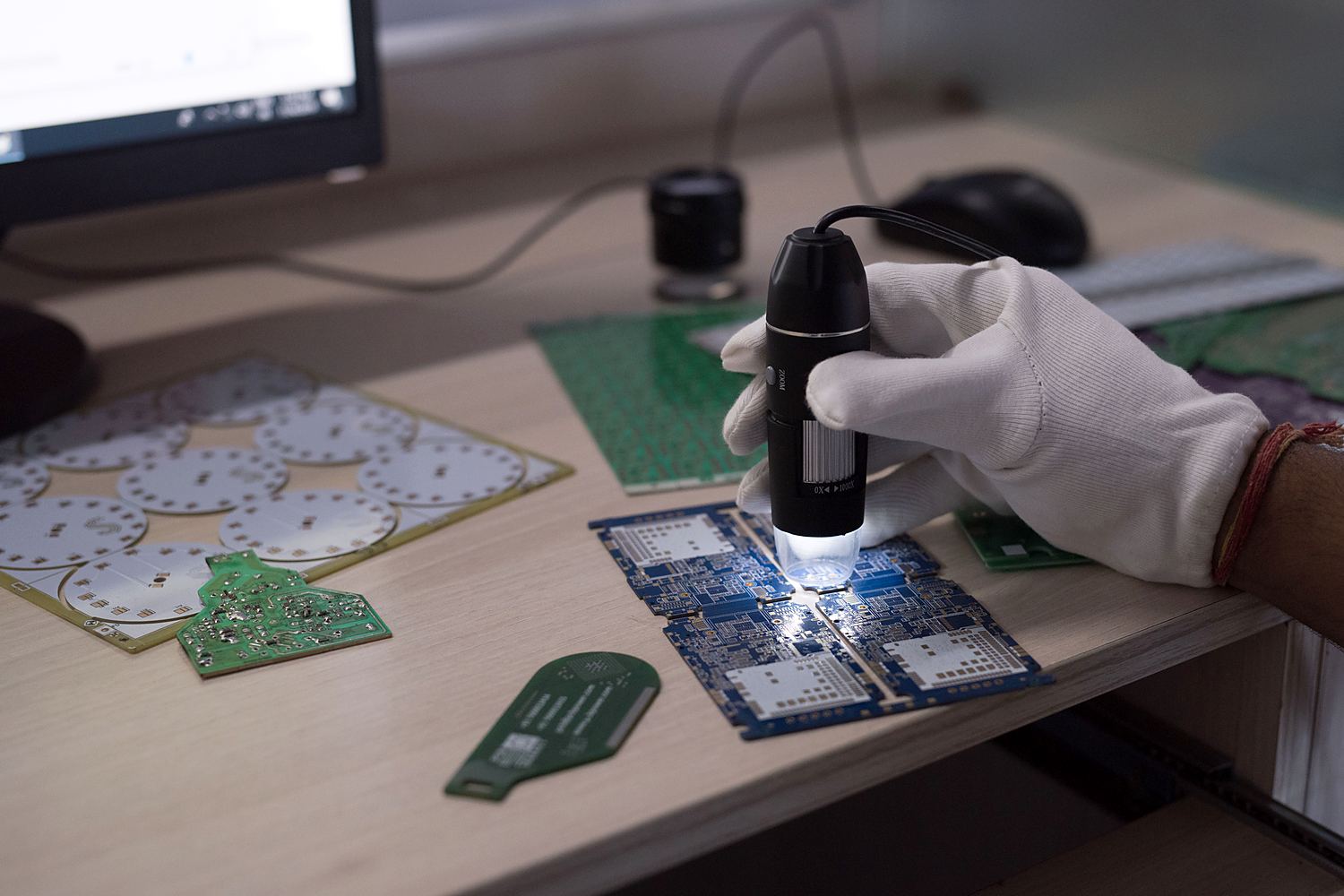

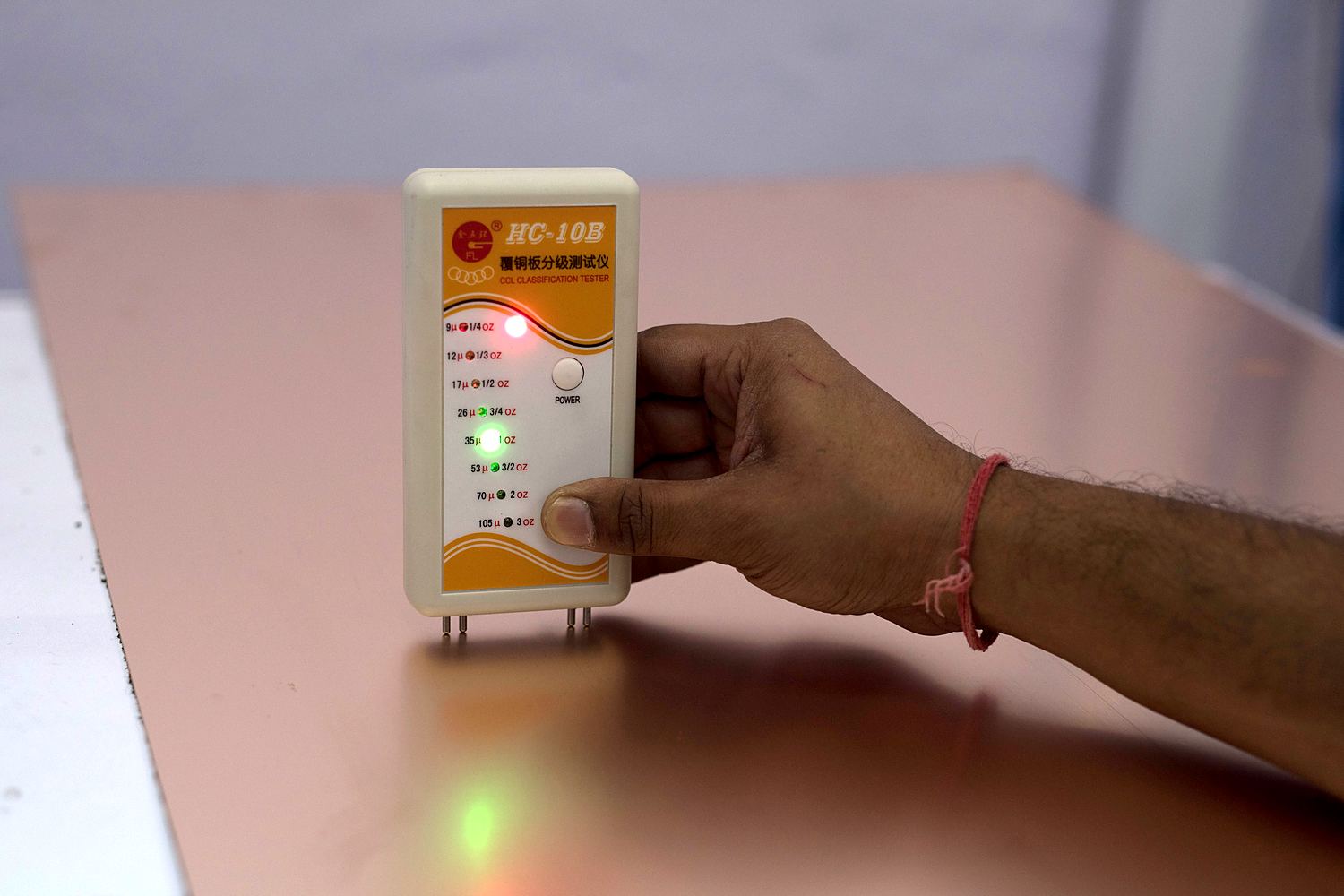

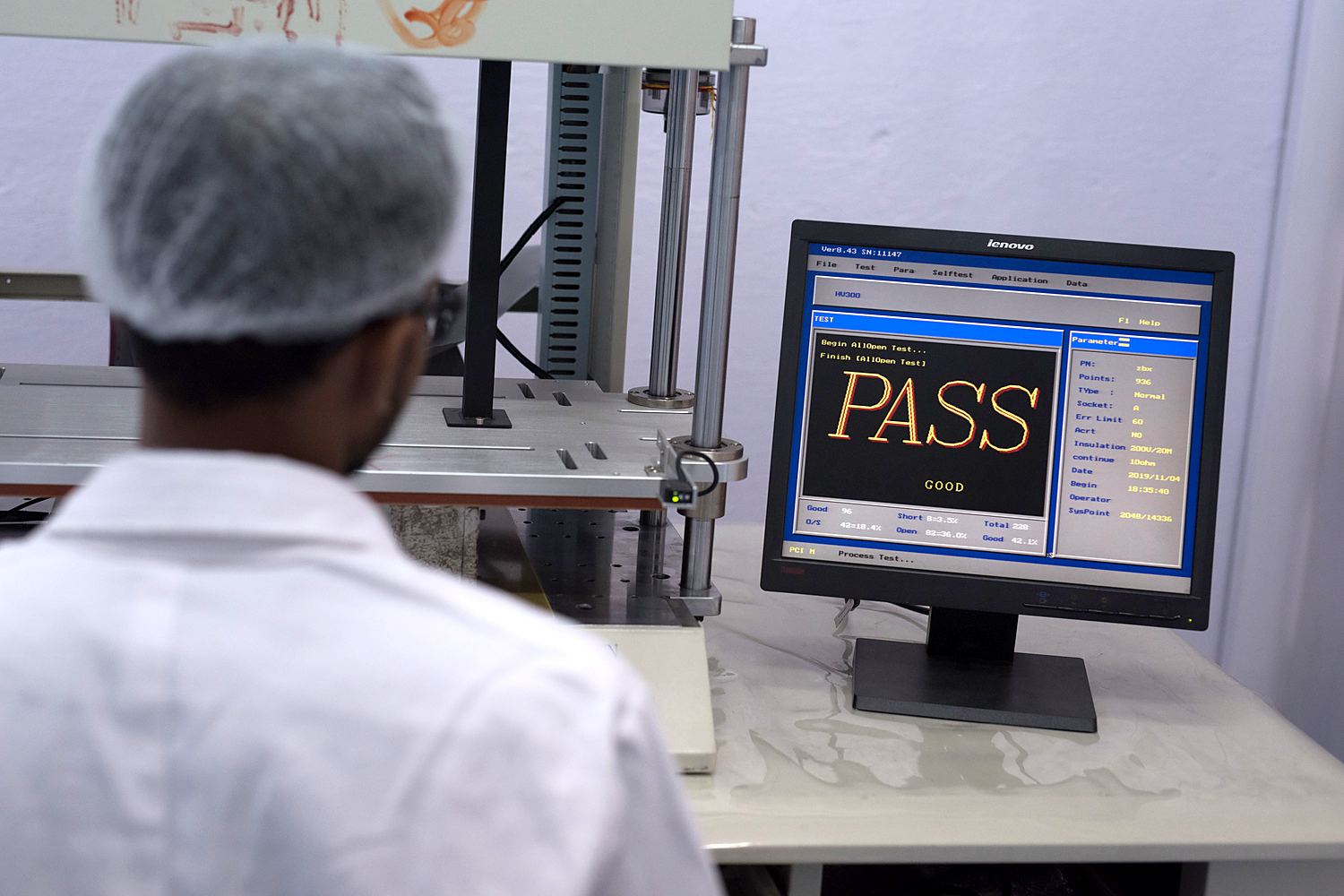

Inspection, measurement and testing by independent QC · 5 photos
Quality you can trace.
Privacy you can count on.
QC that answers only to quality.
Our QC department is independent of production. Only boards it approves move to dispatch, and every lot carries a job number back to its process records.
Your design stays yours.
NDA signed before files are shared, if you need one. Jobs run under client IDs, never your company name.
Samples that pay for themselves.
Adjusted in full against your first production order.
₹2,500
Built for volume. Priced for it.
Costing designed around high-volume, cost-sensitive products, from a plant that turns out 10,000 m² of single-sided board every month. Production orders start at 40 m² per design.
10,000 m²
Tech Specs
- Construction
- Single-sided, one copper layer
- Base materials
- FR1, CEM1, CEM3, FR4, aluminium MCPCB
- Board thickness
- 0.8 mm to 1.6 mm
- Copper
- 35 µm (1 oz)70 µm (2 oz) available
- Solder mask
- Green, white, black
- Legend
- White, black
- Surface finish
- HASL, OSP
- Profiling
- Punching and blanking, CNC routing, V-cut
- Testing
- Bare board testing (BBT)Final inspection by an independent QC team
- Capacity
- 10,000 m² per month
- Files accepted
- Gerber RS-274X with drill file
Design it right the first time.
Six decisions at layout stage that decide your yield and your price. Our CAM team checks every one before production.
Holes away from the edge
On punched boards, keep holes at least one board thickness from the outline so edges don't crack.
Copper back from the outline
Copper at the edge can lift or burr during blanking or V-cut. Leave clearance.
Teardrops on paper laminates
FR1 and CEM1 hold copper less firmly than glass epoxy. Teardrops and larger pads prevent lifting.
Plan the panel with us
A matched array cuts material waste, often the largest part of a single-sided board's price.
Respect mains spacing
On chargers and drivers, keep high-to-low voltage creepage to your product's standard. Slots help.
Fewer hole sizes
Fewer distinct sizes mean fewer punch pins and drill changes. Faster tooling, lower cost.
Customer reviews
Our customers say it best.
5.0Google rating
What customers wrote about our quality, delivery, support and pricing, word for word.
“The customer service was exceptional, featuring friendly and knowledgeable staff who promptly addressed all my inquiries. Their pricing was competitive, particularly given the high quality of the PCBs they produced. Furthermore, they provided valuable additional services like design review and panelization, which streamlined the entire process. I will order again from you.”
“I had a great experience doing business with Sara Circuits. The team was responsive and delivered top quality product at a competitive price. Despite my tight deadlines, team demonstrated exceptional flexibility and responsiveness, ensuring timely delivery. Very happy with their service.”
“Excellent PCB manufacturer in Barwala! High-quality products, timely delivery, and great customer service. Their precision and attention to detail make them a reliable choice for all PCB needs. Highly recommended!”
“Dependable, Fast, and High-Quality PCB Manufacturing – SARA CIRCUITS Delivers Every Time”
“Incredible Customer Support and Unmatched PCB Expertise – SARA CIRCUITS goes above and beyond to manage our expectations.”
“Good quality pcb, fast delivery”
“Knowledgeable PCB manufacturer!”
Trusted by India’s
leading brands.
Our boards go into products from some of the best-known names in Indian lighting, power and consumer electronics, including leading EMS manufacturers.
- LED lighting
- DOB
- Emergency lighting
- Chargers and adapters
- SMPS and LED drivers
- Automotive
- Home appliances
- Inverters
- Consumer electronics
Questions? Answers.
What is your minimum order?
40 m² of board per design (part number), not 40 pieces. That is about 430 sq ft, or about 16,000 pcs of a 50 × 50 mm board, or 4,000 pcs of 100 × 100 mm. We are a B2B production supplier to manufacturers and do not take prototype or small-quantity orders from new buyers. For our regular customers only, designs below 40 m² can be run with a ₹2,500 development charge.
Do you make double-sided or multilayer boards?
No. We make single-sided boards only. That focus is why our tooling, costing and turnaround are built around this one product.
What do you need to quote?
Gerber files with the drill file, base material, thickness, copper weight, surface finish and quantity. If you're unsure about any of these, send what you have and we'll suggest the rest.
How do samples work?
We charge ₹2,500 for a sample run. The full amount is adjusted against your first production order.
Can you handle many different designs?
Yes. We run a large and varied mix of designs across lighting, DOB, charger, SMPS and automotive boards.
Do you have ready tools for my board size?
Very likely. We hold a large library of blanking tools for round bulb, emergency bulb and DOB boards, including 40/46, 60/66, 62, 82, 112 and 132 mm. Send your outline and we will check for a match before quoting. How punching works.
Will you sign an NDA?
Yes, before any files are shared if you prefer. Every job runs under a job number and client ID rather than your company name.
Let's make your boards.
Attach your Gerber, add the basics, press send. We'll come back with a price.
For the fastest quote
- Gerber and drill files
- Material, thickness and copper
- Finish and mask colour
- Quantity per design (minimum 40 m² ≈ 16,000 pcs of 50 × 50 mm) and delivery date
